Noir Geometry

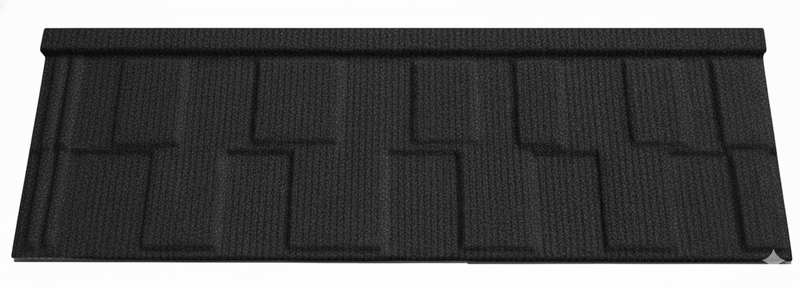

Stone Coated Flat Tiles represent the evolution of roofing aesthetics, offering the sleek, minimalist profile of a modern architectural shingle combined with the extreme durability of volcanic stone and aerospace-grade steel. It is the definitive choice for contemporary designs requiring clean lines and long-term structural integrity.
Availability:
Quantity:

Modern Industrial Aesthetics (Emphasizing Pattern Arrangement and Structural Strength)

Pattern Arrangement:
The design adopts a staggered rectangular module layout, breaking away from the traditional flat and monotonous roof surface. This rhythmic, stepped overlapping arrangement creates a visually powerful sense of order and resilience, resembling the geometric framework of a modern city skyline.

Color:
A deep and composed Midnight Obsidian tone defines the palette, pure and profound in its expression. This color not only effectively absorbs light and reduces glare, but also endows the architecture with an overwhelming sense of tranquility, solidity, and dignified authority.

Advanced Materiality

  • Galvalume® Steel Core (Al-Zn Alloy) The foundation is a high-strength steel sheet coated with an alloy of 55% Aluminum, 43.4% Zinc, and 1.6% Silicon. This composite substrate provides 6–9 times the corrosion resistance of standard galvanized steel, ensuring the tile remains rust-free for over 50 years.

  • Natural Basalt Chips The surface is sintered with basalt granules sourced from volcanic rock. These chips are dyed using high-temperature inorganic pigments, providing a rich, matte texture that is immune to UV fading and resists the growth of moss or lichen.


Precision Craftsmanship

  • Multi-Layer Protective Coating Each tile undergoes a rigorous coating process: a base coat of high-grade acrylic resin bonds the stone chips to the steel, followed by an overglaze of transparent acrylic. This creates a "locked-in" surface that prevents stone shedding and enhances weather resistance.

  • Precision Pressing & Interlocking Using heavy-duty hydraulic presses, the "Flat" profile is formed with a subtle geometric texture. The precision-engineered interlocking edges create a weather-tight seal that can withstand wind speeds of up to 190 km/h, effectively preventing water capillary action.

● Tile Specification

Overall Length:1340X420MM

Length of Cover: 1290MM

Width of Cover:370MM

Area Coverage/tile:0.473m2

Tiles/SQM:2.08PCS

Weight/Tile:2.8kg
