| Quantity: | |
|---|---|

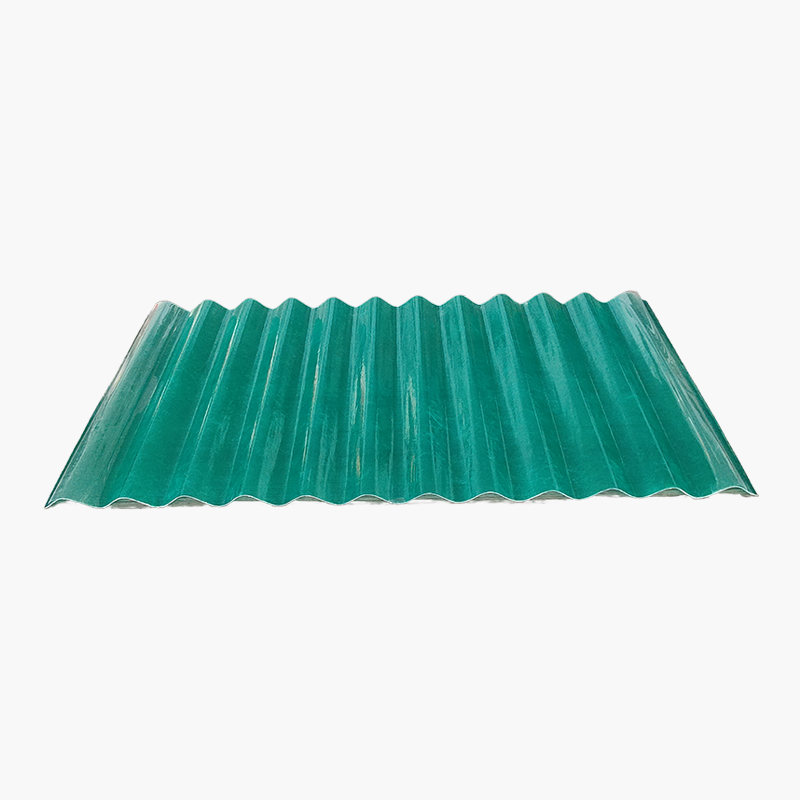

Type: FRP roofing sheet (IBR OR WEAVE TYPE)
Width: 1.0m or 1.2m
Efficient width: 820mm/840mm/850mm/900mm made by 1m And 950mm/980mm/1000mm made by 1.2m
Thickness: 0.7mm/0.8mm/1.0mm/1.2mm/1.5mm/2.0mm/2.5mm/3.0mm
Length: 2m/3.6m/5.8/11.8m Or customized
MOQ: 200 Square meters
Color: Transparent/red/blue/green/yellow/white/grey/brown/ect Or customization
Lifespan: 15-25years
High-Performance Polyester Resin Matrix
Utilizing premium, unsaturated polyester resin as the core matrix. This medical-grade purity ensures maximum clarity and thermal stability, maintaining structural integrity across a vast temperature gradient.
E-Glass Fiber Reinforcement
Infused with high-tensile, alkali-free glass fiber strands. This "skeletal" reinforcement grants the tile exceptional impact resistance and flexural strength, allowing it to withstand heavy snow loads and high wind pressures without cracking.
Anti-Aging Film Cladding (Melinex®)
The exterior is laminated with a high-performance, anti-aging film (such as Melinex® 301). This molecular barrier filters $99.9\%$ of harmful UV rays, preventing the "fiber-bloom" effect and ensuring the tile remains non-yellowing for decades.
Continuous Automatic Production
Manufactured using fully automated continuous forming lines. This ensures a consistent thickness, precise wave geometry, and a void-free composite structure, eliminating the structural weaknesses common in manual hand-layup methods.
| Metric | Performance | Advantage |
| Tensile Strength | $\geq 100 \text{ MPa}$ | Industrial-Grade Endurance |
| Light Transmission | $60\% - 85\%$ (Adjustable) | Soft, Diffused Natural Light |
| Thermal Expansion | $2.2 \times 10^{-5} \text{ cm/cm/}^\circ\text{C}$ | Matches Steel Structures |
| Service Temperature | $-40^\circ\text{C}$ to $+120^\circ\text{C}$ | Extreme Environment Resilience |
